8.0 LOAD-TIME FUNCTIONS
There must be at least one load-time function. If no load-time function is specified, the default is a constant = 1.0. The load-time function may be generated by using various procedures as defined hereafter, or may be specified by defining at each time instant its function value. In that latter case, the load-time function is defined by NLS pairs of time instants and function values, where NLS is the number of load steps defined on the control command. A schematic of a typical load-time function is shown in Figure 8.0.1. The time instants must be in ascending order (i.e. t(j+1) t(j), 1 j NLS). Load step intervals need not be equal and need not be the same from one load-time function to another. As shown in Figure 8.0.1, the load-time function is assumed to behave in a piecewise linear fashion between data points. For values of t outside the interval [t(1), t(NLS)] the G's are defined by constant extrapolation (i.e. G[t] = G[t(1)] for all t t(1); and G[t] = G[t(NLS)] for all t t(NLS)). As an example of the use of this feature, we may take the case in which the load-time function is constant throughout the duration of the analysis. In this case, we may set NLS = 1 and simply read in one data point to define G(t). For instance, the nodal load at time t is defined to be:
F(X, t) = F(X, i) * G[j, t] with j = load_time_function (i) , i = Load_case
Element consistent loads (e.g. pressure, gravity, etc.) are also multiplied by load-time functions. The load case number is defined in the element group data (see Chapter 9). Input for a load-time function is described below.
Figure 8.0.1
Schematic Representation of a Load-Time Function |
LOAD_TIME_FUNCTION
LOAD_TIME_FUNCTION function_type = type , etc...
< etc..., terminate with a blank record >
Create
a load-time function. Two main options
are available. The load-time function
may be read in directly as a list (optionally from another file) or may be
generated.
Load_time_function_number integer [1] Load time function number
Function_type list [*] Function type
piecewise_linear
piecewise_constant
function_formula
acceleration_spectrum
design_spectrum
• Piecewise Linear and Piecewise Constant
Cases
Time_offset real [0.0] Time
offset
(1) File_name string [none] File name
(optional). Name must be
enclosed
in quotation marks.
Load time function data must then follow in the form:
< Time_instant (i), Load_time_function_value (i) > ( i = 1, number_of_load_steps )
< etc..., terminate with a blank record >
• Function Formula Case
(2) A_1 , A_2 , ... , A_7 real [0.0] Formula coefficients
• Acceleration Spectrum Case
(3) Duration real [10.0] Duration (in time units: T)
Cut_off_freq real [10.0] Cut-off frequency (in Hertz: 1/T)
Max_acceleration real [0.20] Maximum acceleration (in units: L/T2)
Damping_ratio real [0.05] Damping ratio; > 0.0 and < 1.0
Seed real [7654321] Seed for random number generation;
> 100,000 and < 100,000,000
Spectral_ordinate_1 real [0.5] Spectral ordinate S1 at period T1
Spectral_abscissa_1 real [0.15625] Spectral abscissa T1
Spectral_ordinate_2 real [0.5] Spectral ordinate S2 at period T2
Spectral_abscissa_2 real [0.40] Spectral abscissa T2
Spectral_ordinate_3 real [0.2] Spectral ordinate S3 at period T3
Spectral_abscissa_3 real [1.0] Spectral
abscissa T3
Power_exponent real [1.0] Power exponent m
(4) Rise_time_t1 real [2.0] Rise time t1
Decay_time_t2 real [5.0] Decay time t2
Decay_rate_c real [0.4] Decay rate c
(cont'd)
(cont'd)
• Design Spectrum Case
(5) Damping_ratio real [0.05] Damping ratio; > 0.0 and < 1.0
Max_acceleration real [0.20] Maximum acceleration (in units: L/T2)
Spectral_ordinate_1 real [0.5] Spectral ordinate S1 at period T1
Spectral_abscissa_1 real [0.15625] Spectral abscissa T1
Spectral_ordinate_2 real [0.5] Spectral ordinate S2 at period T2
Spectral_abscissa_2 real [0.40] Spectral abscissa T2
Spectral_ordinate_3 real [0.2] Spectral ordinate S3 at period T3
Spectral_abscissa_3 real [1.0] Spectral
abscissa T3
Power_exponent real [1.0] Power exponent m
EXAMPLE
Load_Time_Function /
load_time_function_number = 1 /
function_type = piecewise_linear
0.0 , 1.0 # at time = 0.0, function = 1.0
1.0 , 5.0 # at time = 1.0, function = 5.0
Notes/
(1) This option allows the load-time
function to be read in from a data file separate from the main input file. The default (i.e., filename is left empty)
assumes that the load-time function is contained in the main input file.
(2) The load time-function is generated by using the following formula:
G(t) = A1 + A2t
If (A3A4 0.0) then:
and when t A7 then:
where the parameters A1,..., A7 are input.
(3)
The
load time-function is assumed to be an acceleration time history. The acceleration time history is generated by
using the acceleration response spectrum shown
in Figure 8.1.1, following the procedure proposed by Vanmarcke et al. (1976)
and reported in [1]. The implementation
of the procedure was performed in cooperation with Dr. G. Deodatis at

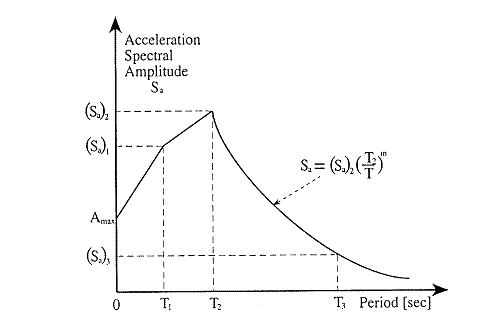

Figure 8.1.1 Acceleration Spectrum
(4)
The
acceleration time history envelope is given by the following formula (
as illustrated in Figure 8.1.2
Figure 8.1.2
(5)
The
load time-function is an acceleration spectrum as shown in Figure 8.1.1. Used for spectral analysis (see Section
12.2).
Reference
/ Bibliography
1. - Gasparini, D.A. and E.H. Vanmarcke,"Simulated Earthquake Motions Compatible with Prescribed Response Spectra", MIT Report No. R76-4, (Jan. 1976).
FILTER
FILTER load_time_function_number = ltime, etc...
This
allows input load-time functions to be filtered.
Note Variable Name Type Default Description
Load_time_function_number integer [0] Load-time function number
Low_cut_off_frequency real [0.05] Low cut-off frequency
(in Hertz) (unit: 1/T)
High_cut_off_frequency real [1/(2*Dt)] High cut-off frequency
(in Hertz) (unit: 1/T)
Transition_band_width real [low/2] Transition band width
(in Hertz) (unit: 1/T)
Notes . .
