Further Post-Processing

The model and results may be written to a data file. The format of this file is documented in Appendix B of the User Manual Appendices, allowing the data to be further processed outside of FEMVIEW.

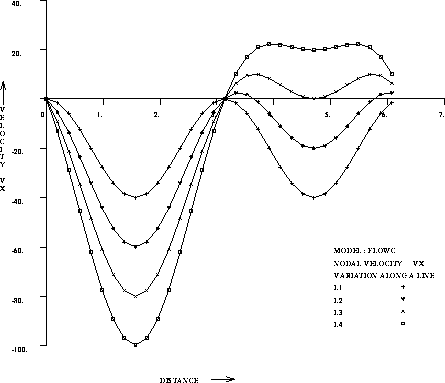

Figure 1.2: Graph Plots
\begin{figure} \centerline{ \psfig {figure=diagrams/chap1.fig10,width=4in} }\end{figure}
