Top Level Interface Subroutines

The following table indicates the naming conventions for the top level interface subroutines, and the required parameters.

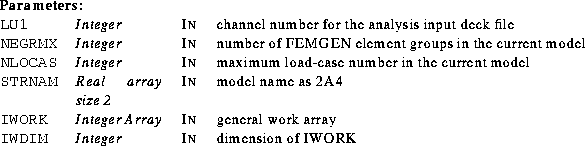

$\begin{parameters} \param{LU1}{Integer}{In}{channel number for the analysis inpu... ...neral work array} \param{IWDIM}{Integer}{In}{dimension of IWORK}\end{parameters}$

**Table 3.1:** Calling parameters for top Level Interface Subroutines
	Analysis	Top Level
	Package	Interface Subroutine
	ABAQUS	CALL PABAQ2(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	ADINA	CALL PADII(LU1,STRNAM,IWORK,IWDIM)
	ANSYS	CALL PANSY(LU1,NLOCAS,STRNAM,IWORK,IWDIM)
	ASAS	CALL PASAS(LU1,LUW,LUR,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	ASKA	CALL PASKA(LU1,LUW,LUR,NEGRMX,NLOCAS,STRNAM,IWORK,IWKLEN)
	BEASY	CALL PBEAS(LU1,STRNAM,IWORK,IWDIM)
	BERSAFE	CALL PBERS(LU1,NLOCAS,STRNAM,IWORK,IWDIM)
	DYNA	CALL PDYNA(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	DYNAFLOW	CALL PDYFL(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	EVOLVER	CALL PEVOL(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	NASTRAN	CALL PNAS(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	NISA	CALL PNISA(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	PAFEC	CALL PPAF(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	PERMAS	CALL PPERM(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	SAMCEF	CALL PSAMC(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	STARDYNE	CALL PSTAR(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	LUSAS	CALL PLUSAS(LU1,JEGRMX,JLOCAS,STRNAM,IWORK,IWDIM)
	SAP	CALL PSAP(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	STRUDL	CALL PSTRU(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	COSMOS	CALL PCOSM(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	TSOL	CALL TEUF(LU1,STRNAM,IWORK,IWDIM)
	FIDO	CALL PFIDO(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	ANALY1	CALL PANA1(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	ANALY2	CALL PANA2(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	ANALY3	CALL PANA3(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	DIANA	CALL PDIAN(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	DXF	CALL PDXF(LU1,STRNAM,IWORK,IWDIM)
	IGES	CALL PIGES(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	LARSTRAN	CALL PLARS(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	MISES3	CALL PMISE(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	MELISSA	CALL PMELI(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	PHOENICS	CALL PPHOE(LU1,STRNAM,IWORK,IWDIM)
	STEP	CALL PSTEP(LU1,JEGRMX,JLOCAS,STRNAM,IWORK,IWDIM)
	VISAGE	CALL PVISA(LU1,STRNAM,NEGRMX,IWORK,IWDIM)
	FS2	CALL PFS2(LU1,STRNAM,IWORK,IWDIM)
	FLOSOL	CALL PFLOS(LU1,STRNAM,IWORK,IWDIM)
	CASTSOL	CALL PCAST(LU1,STRNAM,IWORK,IWDIM)
	SOLVIA	CALL PSOLV(LU1,STRNAM,IWORK,IWDIM)
	LRSTRAND	CALL PLRST(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	FLUENT	CALL PFLUE(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	PATRAN	CALL PPAT(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	DF2	CALL PDF2(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	CRISP	CALL PCRSP(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	FINEL	CALL PFINL(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	EZBEA	CALL PEZBEA(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	APES	CALL PAPES(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	F3	CALL PF3(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)
	PHYSICA	CALL PPHYSI(LU1,NEGRMX,NLOCAS,STRNAM,IWORK,IWDIM)

**Table 3.2:** Routine Naming Conventions for Customised Analysis Environments
Analysis	Element Mapping	Properties	Analysis Type
Package	Routine	Routine	Routine
ABAQUS	ABAQEL	ABAQIQ	ABAQAN
ADINA	ADIIEL	ADIIIQ	ADIIAN
ANSYS	ANSYEL	ANSYIQ	ANSYAN
ASAS	ASASEL	ASASIQ	ASASAN
ASKA	ASKAEL	ASKAIQ	ASKAAN
BEASY	BEASEL	BEASIQ	BEASAN
BERSAFE	BERSEL	BERSIQ	BERSAN
DYNA	DYNAEL	DYNAIQ	DYNAAN
DYNAFLOW	DYFLEL	DYFLIQ	DYFLAN
EVOLVER	EVOLEL	EVOLIQ	EVOLAN
NASTRAN	NASTEL	NASTIQ	NASTAN
NISA	NISAEL	NISAIQ	NISAAN
PAFEC	PAFEEL	PAFEIQ	PAFEAN
PERMAS	PERMEL	PERMIQ	PERMAN
SAMCEF	SAMCEL	SAMCIQ	SAMCAN
STARDYNE	STAREL	STARIQ	STARAN
LUSAS	LUSAEL	LUSAIQ	LUSAAN
SAP	SAPEL	SAPIQ	SAPAN
STRUDL	STRUEL	STRUIQ	STRUAN
COSMOS	COSMEL	COSMIQ	COSMAN
TSOL	TEUFEL	TEUFIQ	TEUFAN
FIDO	FIDOEL	FIDOIQ	FIDOAN
ANALY1	ANA1EL	ANA1IQ	ANA1AN
ANALY2	ANA2EL	ANA2IQ	ANA2AN
ANALY3	ANA3EL	ANA3IQ	ANA3AN
DIANA	DIANEL	DIANIQ	DIANAN
DXF	DXFEL	DXFIQ	DXFAN
IGES	IGESEL	IGESIQ	IGESAN
LARSTRAN	LARSEL	LARSIQ	LARSAN
MISES3	MISEEL	MISEIQ	MISEAN
MELISSA	MELIEL	MELIIQ	MELIAN
PHOENICS	PHOEEL	PHOEIQ	PHOEAN
STEP	STEPEL	STEPIQ	STEPAN
VISAGE	VISAEL	VISAIQ	VISAAN
FS2	FS2EL	FS2IQ	FS2AN
FLOSOL	FLOSEL	FLOSIQ	FLOSAN
CASTSOL	CASTEL	CASTIQ	CASTAN
SOLVIA	SOLVEL	SOLVIQ	SOLVAN
LRSTRAND	LRSTEL	LRSTIQ	LRSTAN
FLUENT	FLUEEL	FLUEIQ	FLUEAN
PATRAN	PATEL	PATIQ	PATAN
DF2	DF2EL	DF2IQ	DF2AN
CRISP	CRSPEL	CRSPIQ	CRSPAN
FINEL	FINLEL	FINLIQ	FINLAN
EZBEA	EZBEEL	EZBEIQ	EZBEAN
APES	APESEL	APESIQ	APESAN
F3	F3EL	F3IQ	F3AN
PHYSICA	PHYSEL	PHYSIQ	PHYSAN
