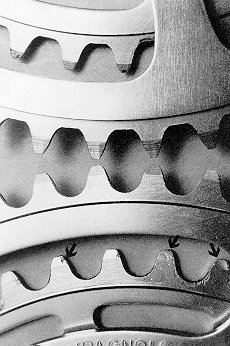

shows the teeth on a
new sprocket (top) and a worn sprocket (bottom) with wear locations indicated
by arrows. This wear results from a friction interaction between the chain
and the wheel and the work causing the damage comes at the expense of the work
available for propulsion. Lubrication is important here as well as proper
tooth shape that favors a rolling interaction rather than a sliding interaction
between the chain and the chain wheel.
The link-by-link advance of
the chain causes a tooth-by-tooth advance of the rear sprocket, and so the ratio
of the number of teeth on these two wheels determines the gear ratio associated
with power transmission between the pedals and the rear wheel. |
|
|
|
|
|
|
|
|
|
|
