Cylinder Pressure

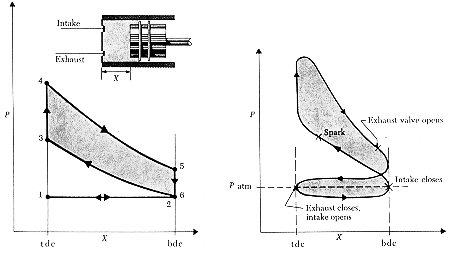

The diagram shows an "ideal" pressure-cylinder
volume curve for a spark ignited 4-cycle engine together with
one approximating actual engine (p,v) conditions. In the ideal case,
the inlet (1,2) & exhaust (2,1) paths are at 1 atmosphere, the heat addition
(3,4) is at constant volume as is the exhaust heat loss (5,6). The compression
(2,3) and work (4,5) strokes are both adiabatic. |
|
|
|
|
|
|
In the "real" cycle,
inlet and exhaust flow restrictions reduce and increase these pressures, respectively,
the combustion process adds heat over a range of cylinder volumes,
and the exhaust gases leave the engine above room temperature. |
|
