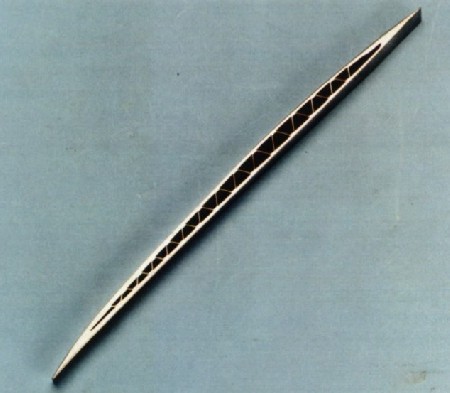

The photograph shows a cross-section of a fanblade for the Rolls-Royce
Trent gas turbine engine. This wide chord blade has internal bracing to
improve its aerodynamic stability and mechanical resonance properties.
