VIEW OPTIONS EDGES [Control]

The command allows selection of which edges (mesh lines) of the elements are to be displayed. In FEMGEN , only hidden views will be effected.

Control	Comments
ALL	All element edges are displayed.
OUTLINE	In FEMVIEW , the following element edges are drawn:
	Edges with a connectivity of 1 (ie. edges common to a single element),
	and edges that are common to free faces of elements where these faces
	have normals that subtend an angle greater than 35 degrees to each
	other.
	In FEMGEN , element edges that are on FEMGEN lines will be drawn.
MATERIALS	This will display the same edges as OUTLINE and in addition edges
	that are on a material boundary. (FEMVIEW only).
CONNECT-1	Only those edges that are common to a single finite element will be
	drawn. (FEMVIEW only).
INHIBIT	No element edges are displayed.

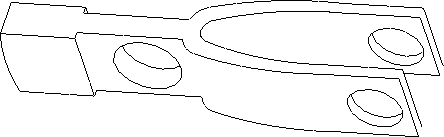

**Figure 2.134:** CONNECT-1 edges applied to a hidden view
