Frequency Response of the Servo-Actuator system

The frequency response of the servo-
actuator system depends upon the
capacity of the hydraulic pump, the
amplitude of the required motion, and
the load required to deform the sample.

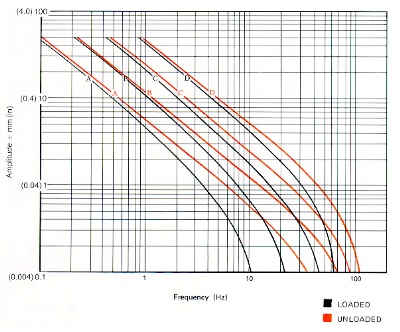

For the 20 L/min pump and 100 kN
actuator of the test apparatus, the curves B in the diagram shown opposite indicate the expected system
performance
