IC Engine Emmisions

These diagrams show the NOx and CO emissions for the engine.

Again, the air-fuel ratio of 1.4 seems to provide a good emissions performance although less spark advance reduces the NO_x emissions.

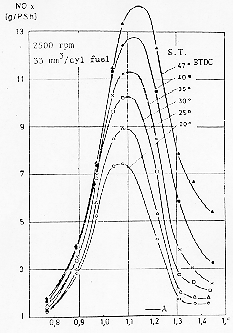

NO_x

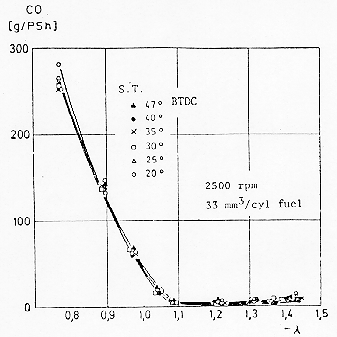

CO
