PVT Surface

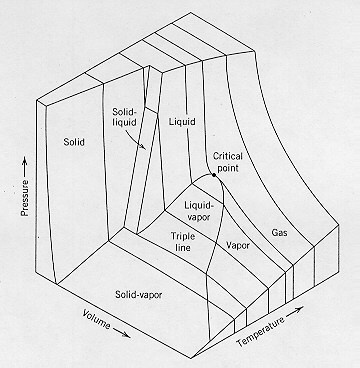

The (pvT) surface shown opposite is for a material
that contracts on freezing. The surface is described by the Equation
of State of the material and is the locus of all equilibrium
states of the material.
The diagram shows regions associated
with solid, liquid and gas phases. Regions in which two phases co-exist are
normal to the (p,T) plane as in such regions isotherms and isobars are
identical. As a phase change takes place, material goes from one phase to
the other and the volume of the system changes. The Gibbs function is
the same for the two phases in equilibrium. |
|
|
|
