Materials and Structure




Multi-layer Laminates

A laminate is a series of unidirectional laminae bonded together so that their fiber directions make different angle with a material axis. By controlling the number of layers and the fiber angles, the laminate may have its mechanical properties tailored to specific tasks.

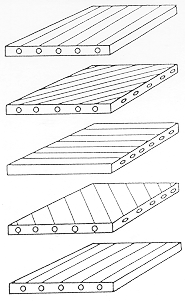

The diagram shows typical fiber directions in a multi-layer laminate that is symmetrical about its center. The symmetry of a laminate is important in determining its response to temperature changes, applied stresses, and other external conditions. The layup shown will produce a material with nearly isotropic properties in its plane and minimum sensitivity to temperature and humidity changes.

From: Hull, "An Introduction to Composite Materials," Cambridge (1992)
