Human Power and Propulsion |
|||||||||||||||
|
|
|
|||||||||||||

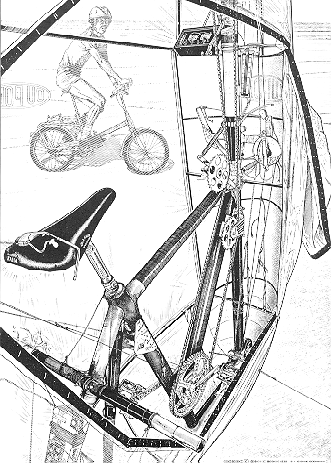

The technology of the bicycle, with its relatively low-loss chain and gear drive and rigid triangulated frame, has been applied to all successfull human-powered aircraft. The diagram shows the pilot's environment in the Gossamer Albatross, a plane designed to cross the Manche between England and France. The upright seat position was favored by the cyclist-pilot for endurance flying. Power was taken from the pedals by a long, low- friction chain to the shaft of the pusher propeller. |
|||||||||||||||
 |
|||||||||||||||
 |
|||||||||||||||
From:
Burke, "The Gossamer Condor and Albatross: A Case Study in Aircraft Design,"
Aerovironment (1980), and NASSA |
|||||||||||||||
