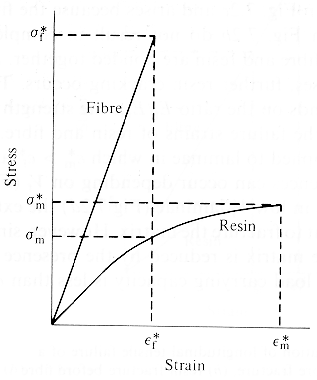

| Stress-Strain
curve for a fiber and matrix system for which the fiber fractures at a

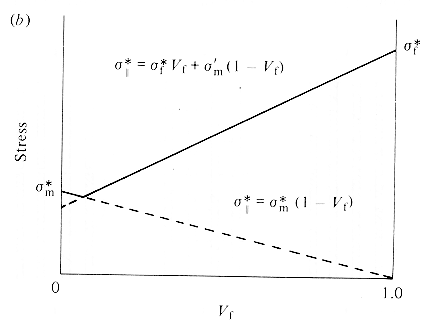

lower strain than the matrix. The Fracture stress of a composite made from
these materials (b) as a function of fiber volume fraction.
From: Hull, "Introduction to Composite Materials," Cambridge University Press, (1992) |
||||||||
