Materials, Properties and Design

· Material properties depend upon their bonding type.

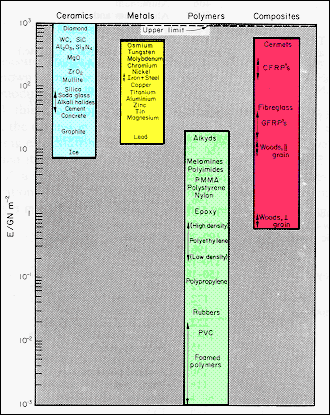

· The diagram shows the range of values that can be expected for the elastic constant, Young's modulus, E, measured in GPa (GN/m²). This quantity scales the elastic response of a material subjected to an applied stress, σ, through Hooke's law:
σ = E ε
where e is the strain produced by the applied stress.

After: Ashby and Jones, "Engineering Materials," Pergamon (1980)
