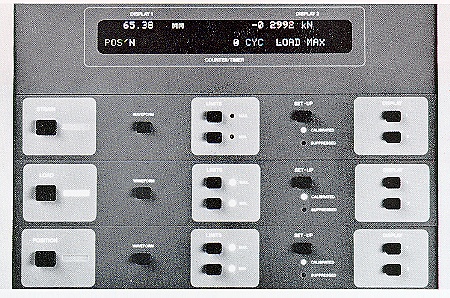

Upper Display Panel

The upper panel has an 80
character display, and panels for
Position, Load, and Strain control.

The selection of the button on the left of any panel initiates a transfer to that control mode.

The Waveform button allows the
generator associated with that
channel to be set up.

The Limits group permits maximum and minimum safety limits to be set, and actions to be specified when these limits are encountered. The Display buttons at the far right select the parameters to be shown in the two display areas.
