| Failure Mechanisms | |||||||||||||||||
| ·
Consider

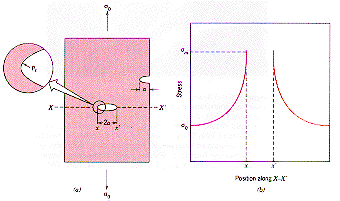

either the surface crack of length a, or the bulk crack of length 2a shown.
· If no net change in system energy results from critical crack propagation: {Increase in Surface Energy } = {Decrease in Strain Energy}. · The surface energy of the crack, US,is given by: US= 2(2aS) = 4aS i.e. (dUS/da) = 4S |
|||||||||||||||||
 |
|||||||||||||||||
| From:
Callister, "Materials Science and Engineering,"
Wiley (1994) |
|||||||||||||||||
| · The Elastic strain energy released in the presence of a crack of length 2a is: UE = π(1- ν2)a2 σ2/E i.e: dUE/da = 2πa(1 - ν2)σ2 /E . | |||||||||||||||||
